ST connectors

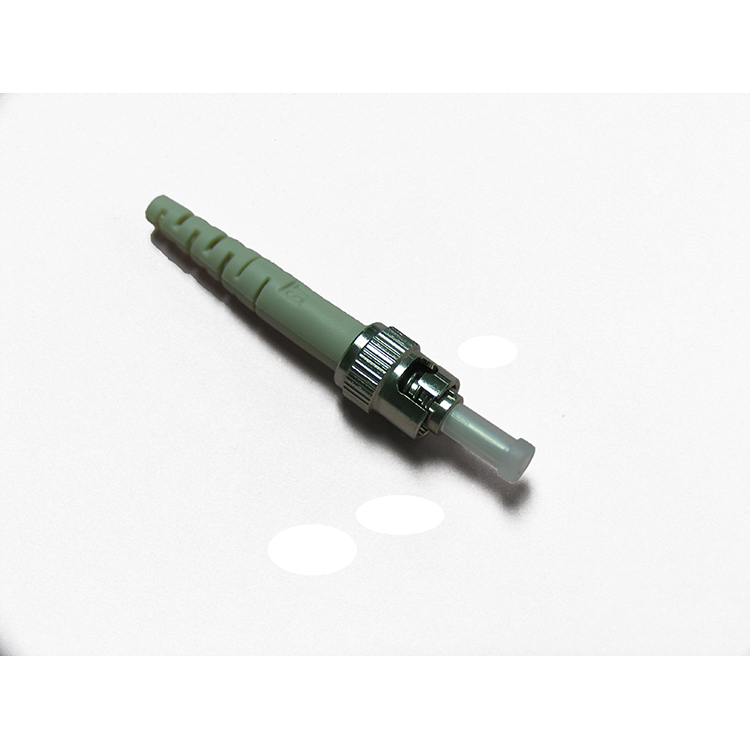

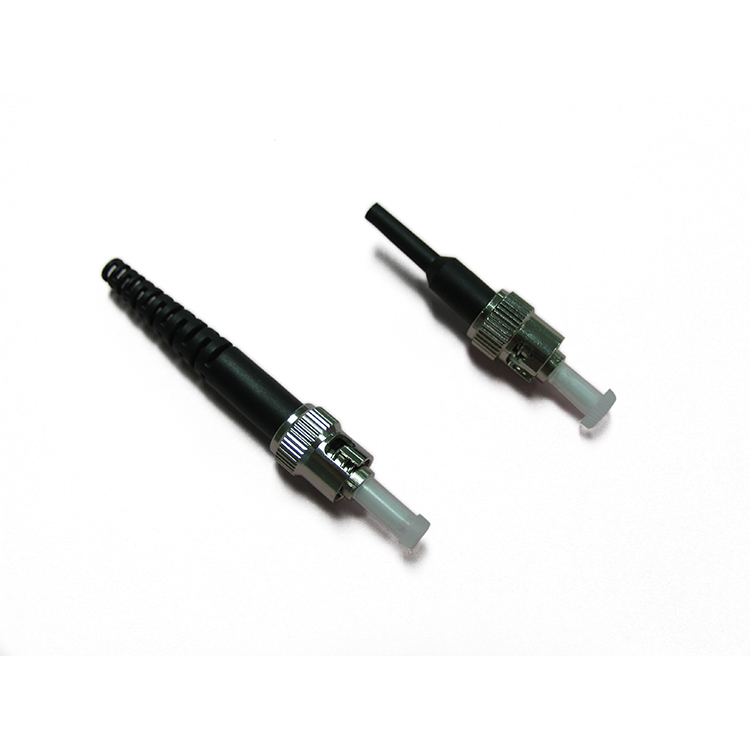

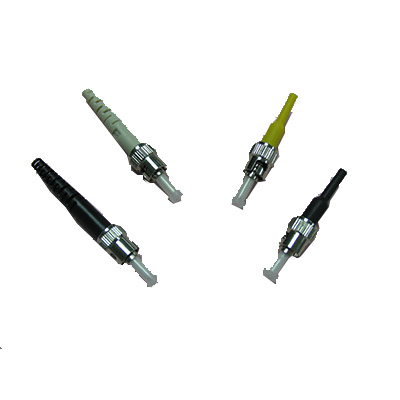

ST connector has a bayonet-style housing and a long spring-loaded ferrule hold the fiber. They are available in both multi-mode and single-mode versions. Horizontally mounted simplex and duplex adapters are available with metal housing, with a choice of phosphor bronze or zirconia split sleeve. The ST is one of the older generations of connector, but is still widely used for multimode networks, including LANs for buildings and campuses.

Product description

Features:

●Precision mechanical dimension
●Good Insertion Loss
●MM/SM/APC Available
●Ultra low back reflection
●Corrosion resistant body
●0.9mm, 2.0mm and 3.0mm available
●Connector Kits is also available
●Meets Bellcore specifications
●Complaint with RoHS

Application:

●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX

General Specification:

Parameter

Value

Insertion Loss

PC: ≤0.30dB

APC: ≤0.30dB

Mating Durability(500c)

0.25dB

Temperature Stability

≤0.35dB

Operating Temperature

-40~ +80℃

Storage Temperature

-40~ +80℃
