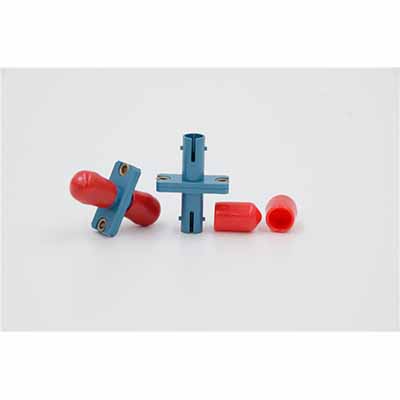

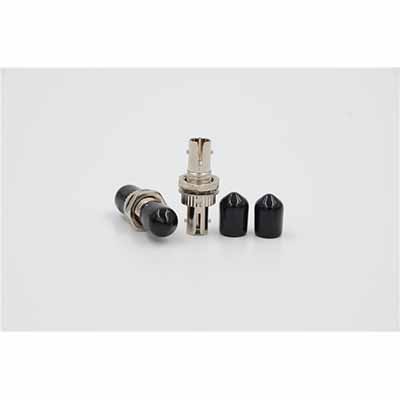

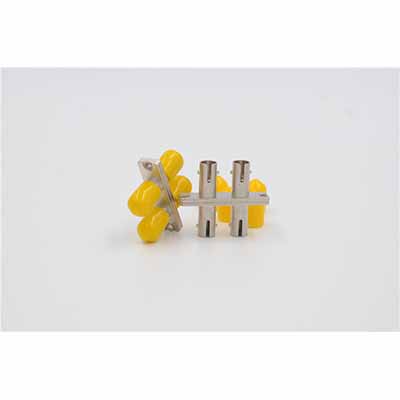

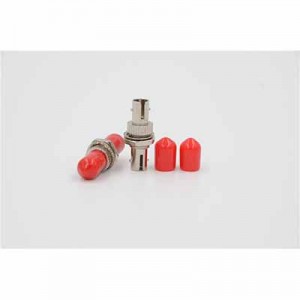

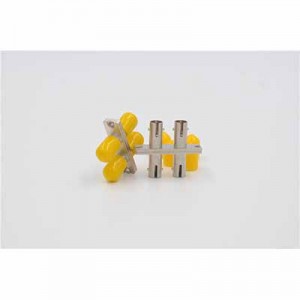

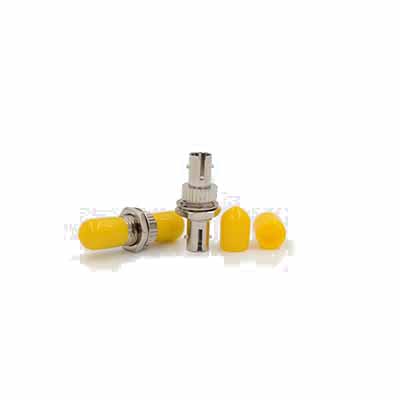

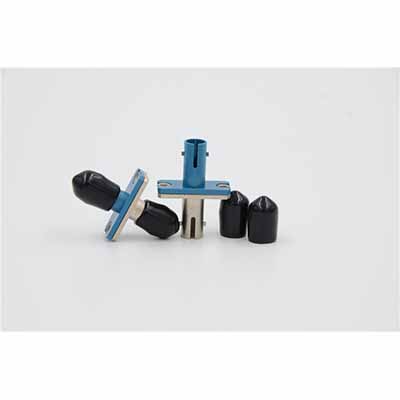

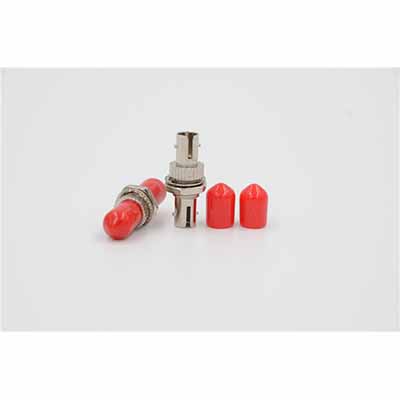

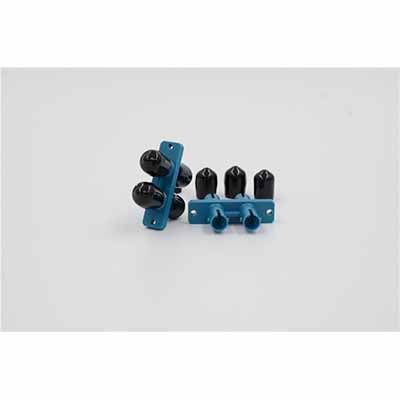

ST adaptor

ST adapters are comprised of a polymer or metal outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phoshphor bronze alignment sleeves and precision moulded polymer and precision metal housing provides consistent long-term mechanical and optical performance.

Product description

Features:

●Precision mechanical dimension
● Available in D-shaped and Rectangular mount
● Available in SM/MM/APC and Simplex/Duplex
● Metal Body for long life more than 1000mating
● Threaded with nuts or snap-in coupling, easily install in panel mount
●Easily installs into panel mount
●Meets Bellcore GR-326 standard
● Compliant with IEC874-10
●Complaint with RoHS

Application:

●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX

General Specification:

Parameter

Value

Insertion Loss

PC: ≤0.20dB

APC: ≤0.20dB

Mating Durability(500c)

0.20dB

Withdrawal Force(g/f)

100~300

Operating Temperature

-40~ +80℃

Storage Temperature

-40~ +80℃
