Prizm® LightTurn® to MT Assemblies Specifications

PRIZM® LightTurn® fiber assemblies are used to mate between Parallel Optical Devices (POD), it supports simple mating to board-mounted modules and other high density transceivers that deploying parallel optic technology.

The alignment of the PRIZM® fiber assembly and the POD supports a significant increase in optical T/R module density on circuit boards, it improves fiber routing by direct connection to the card edge, optimizing airflow and port density for migrating to the next-generation high speed, high density networks.

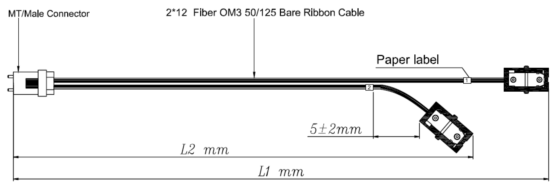

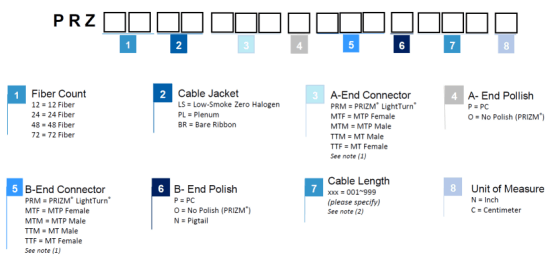

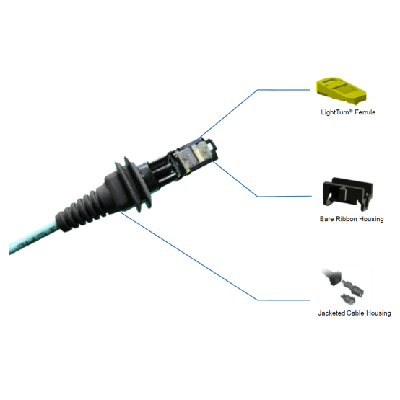

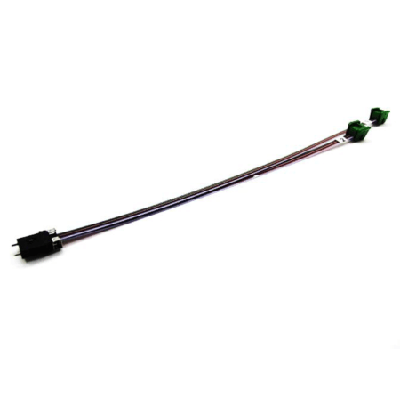

Fiberconcepts’ value-added fiber assembly connects PRIZM® connector to the MTP style connector with customized configurations, it is available in 1.6mm round jacketed and bare ribbon cables, with the choices of OM3 or OM4 for using across multiple applications.

Inquire now

Product description

Advanced Fiber Assemblies For ON-BOARD OPTICS

With the advent of ‘Big Data’, including the development of large data centers, each comprising thousands of servers, the need for faster circuitry has materialized. As circuit speeds exceed 40/100G fiber optics has begun to be employed to connect server racks, switches and routers in both public and private data centers.

Fiberconcepts’ industry leading experience and engineering excellence have been applied to each advanced and customized on-board optics (OBO) fiber assemblies; ultimately provide unprecedented support for high-performance on-board optics system. Some customers came to us at the conceptual stage of a new development using unique fiber assemblies to support their on-board optics application. Initially, the challenge was to develop a set of quality requirements and achievable stringent tolerances to make the customized fiber assembly to precisely fit into a specific OBO device, we are proud to work closely with customer to accomplish the task together.

These tiniest fiber assemblies take ever important role in the entire process of conceptualizing ideas, designing, developing and eventually introduce a new OBO product. Fiberconcepts works in close collaboration with customers on each stage throughout the process, we help our customers outshine competitors with maximized quality and minimized cost.
