Optical Flex Circuit Assemblies Specifications

Fiberconcepts’ optical fiber flex circuit offers an innovative and flexible solution to precision fiber management that especially suitable for high fiber count backplane applications and cross-connect systems. It provides a manageable means of fiber routing from card-to-card or for the interconnection of optoelectronic devices on the PCB, offering unsurpassed size and weight reduction compared to traditional cable bundles.

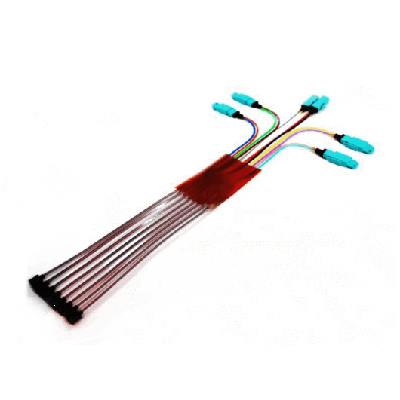

This fully customizable flex circuit solution consists of a number of optical fibers which are encapsulated in thin protective film substrates, and to pre-terminate with customer specified interconnect interfaces include MT-based connectors (MXC, MTP, MT ferrules), or single-fiber connectors (LC, SC).

Inquire now

Product description

Advanced Fiber Assemblies For ON-BOARD OPTICS

With the advent of ‘Big Data’, including the development of large data centers, each comprising thousands of servers, the need for faster circuitry has materialized. As circuit speeds exceed 40/100G fiber optics has begun to be employed to connect server racks, switches and routers in both public and private data centers.

Fiberconcepts’ industry leading experience and engineering excellence have been applied to each advanced and customized on-board optics (OBO) fiber assemblies; ultimately provide unprecedented support for high-performance on-board optics system. Some customers came to us at the conceptual stage of a new development using unique fiber assemblies to support their on-board optics application. Initially, the challenge was to develop a set of quality requirements and achievable stringent tolerances to make the customized fiber assembly to precisely fit into a specific OBO device, we are proud to work closely with customer to accomplish the task together.

These tiniest fiber assemblies take ever important role in the entire process of conceptualizing ideas, designing, developing and eventually introduce a new OBO product. Fiberconcepts works in close collaboration with customers on each stage throughout the process, we help our customers outshine competitors with maximized quality and minimized cost.
