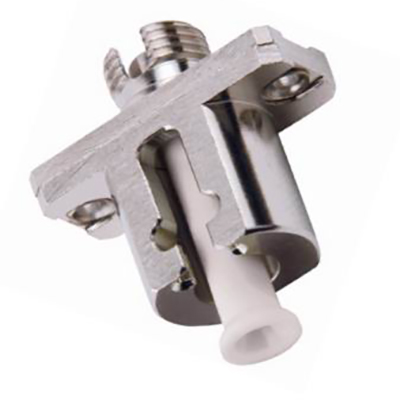

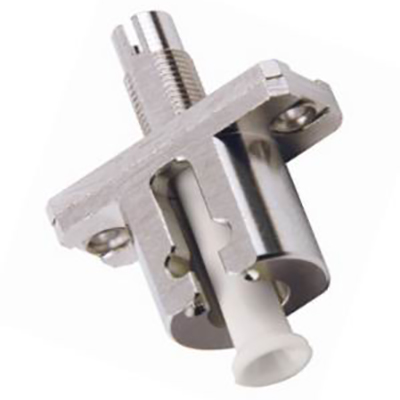

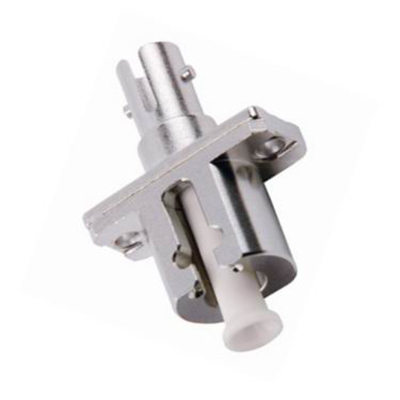

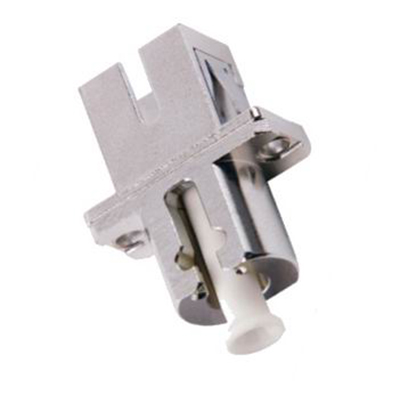

Female to Male Hybrid fiber optic adaptors allow users to convert from one connector type to another. These adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.
Features:
●Precision mechanical dimension
● Available in several standard colors
● Available without flanges or with flange, saving panel space
● Available in SM/MM/APC
● Panel clip for easy installation
●Meets Bellcore GR-326 standard
●Complaint with RoHS
Application:
●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX
General Specification:
|
Parameter |
Single-Mode |
Multi-Mode |
||
|
|
Value |
|||
|
Insertion Loss |
PC: ≤0.30dB |
≤0.30dB |
||
|
Return Loss |
PC: ≥45dB |
APC: ≥60dB |
/ |
/ |
|
Mating Durability(500c) |
0.20dB |
|||
|
Operating Temperature |
-40~ +80℃ |
|||
|
Storage Temperature |
-40~ +80℃ |
|||
