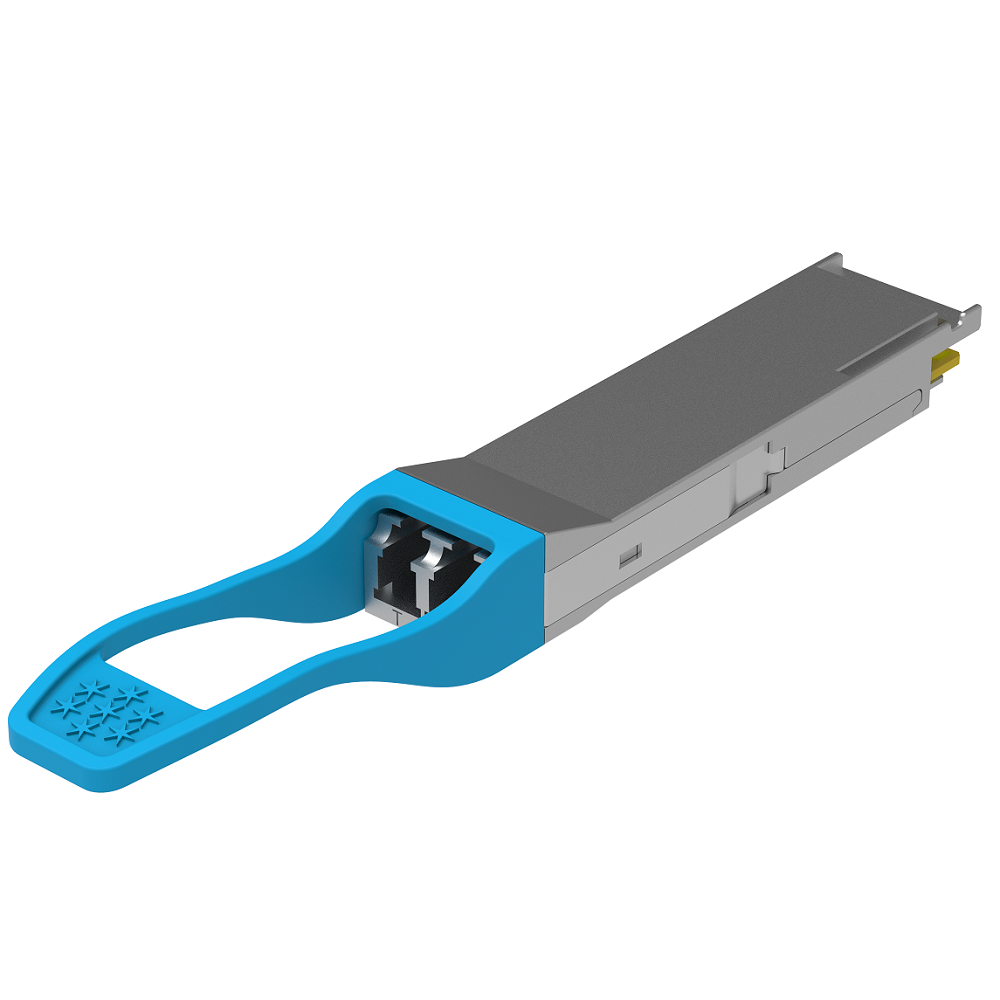

The INTCERA 40G QSFP+ LR4 optical module (GQS-SPO400-IR4C) supports transmission distance up to 10km using CWDM wavelengths (1271nm, 1291nm, 1311nm, 1331nm). Designed for 40G Ethernet 40GBASE-LR4 links over duplex single mode fibers.
Features:
● Hot-pluggable QSFP+ form factor
● Compliant with QSFP MSA standard
● Compliant with IEEE 802.3ba 40GBASE-LR4 standard
● 4 channels full-duplex transceiver module
● Supports 40Gb/s aggregate bit rate
● 4 channels CWDM uncooled FP lasers with AAWG MUX
● High-sensitivity PIN-TIA with AAWG DEMUX
● 2.5W maximum power dissipation
● Maximum link length of 2km on SMF
● Duplex LC receptacles
● Operating case temperature range: 0 to 70°C
● Single 3.3V power supply
● RoHS-6 compliant (lead free)
Application:
● IEEE 802.3ba 40GBASE-LR4
