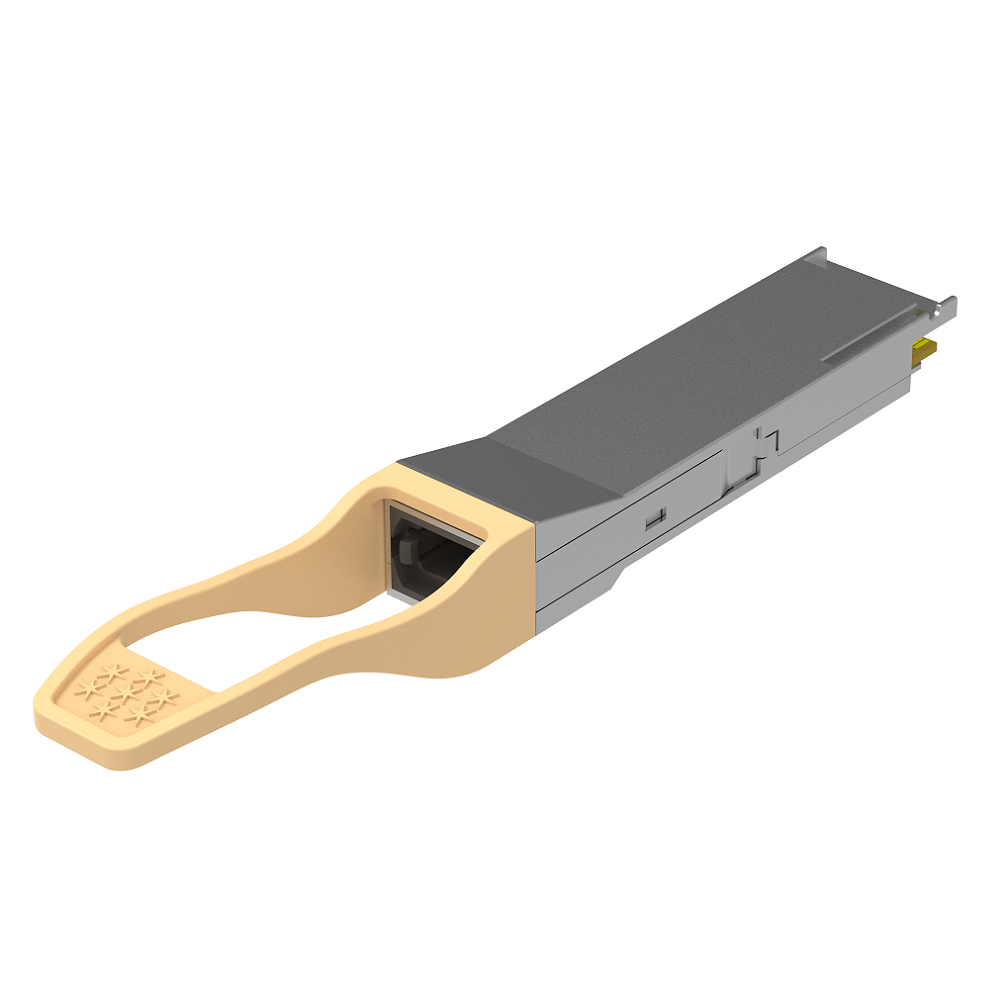

The INTCERA 4x16GFC QSFP+ optical module (GQS-MPO560-SR4C) supports transmission distance up to 100m using 850nm wavelengths. Designed for 40G Ethernet 40GBASE-SR4, InfiniBand 4xFDR and 4x16G Fibre Channel links over multiple multimode fibers.
Features:
● Hot-pluggable QSFP+ form factor
● Compliant with QSFP MSA standard
● Compliant with IEEE 802.3ba 40GBASE-SR4 standard
● Compliant with IB-4x-FDR standard
● Compliant with 4x16GFC standard
● 4 channels full-duplex transceiver module
● Supports 56Gb/s aggregate bit rate
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● 1.5W maximum power dissipation
● Maximum link length of 100m on OM3 MMF or 150m on OM4 MMF
● Single MTP/MPO receptacle
● Operating case temperature range: 0 to 70°C
● Single 3.3V power supply
● RoHS-6 compliant (lead free)
Application:
● IEEE 802.3ba 40GBASE-SR4
● IB-4x-FDR
● 4x16GFC
