Features:

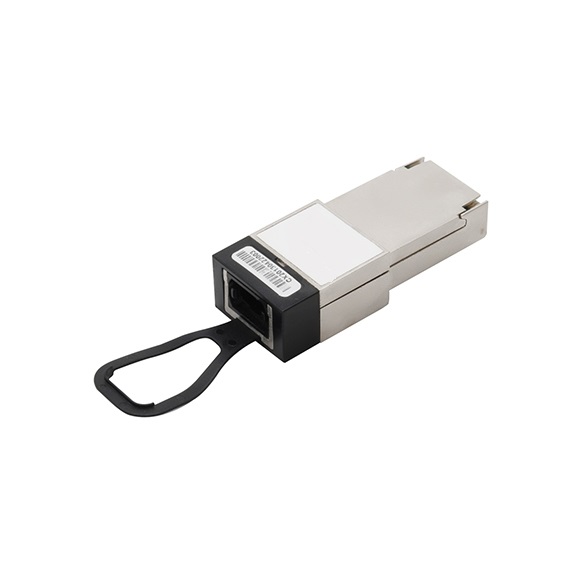

The 120G CXP SR10 module is compliant with the CXP MSA (120Gb/s interface specification for CXP transceiver). It is an assembly of 12 full-duplex lanes, and each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 126Gb/s.
● 12 channels full-duplex transceiver modules
● Transmission data rate up to 10.5Gbps per channel
● 12 channels 850nm VCSEL array
● 12 channels PIN photo-detector array
● Unretimed CPPI electrical interface
● Low power consumption < 4.5W
● Hot-pluggable CXP form-factor
● 12 channels PIN photo detector array
● 4.5W maximum power dissipation
● Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
● Single MPO24 connector receptacle
● Operating case temperature range 0°C to +70°C
● 3.3V power supply voltage
● RoHS-6 compliant (lead free)
Application:
● IEEE 802.3ba 100GBASE-SR10
● 12x 1G/2G/4G/8G/10G Fibre Channel
● 12x InfiniBand SDR/DDR/QDR
● PCIe
